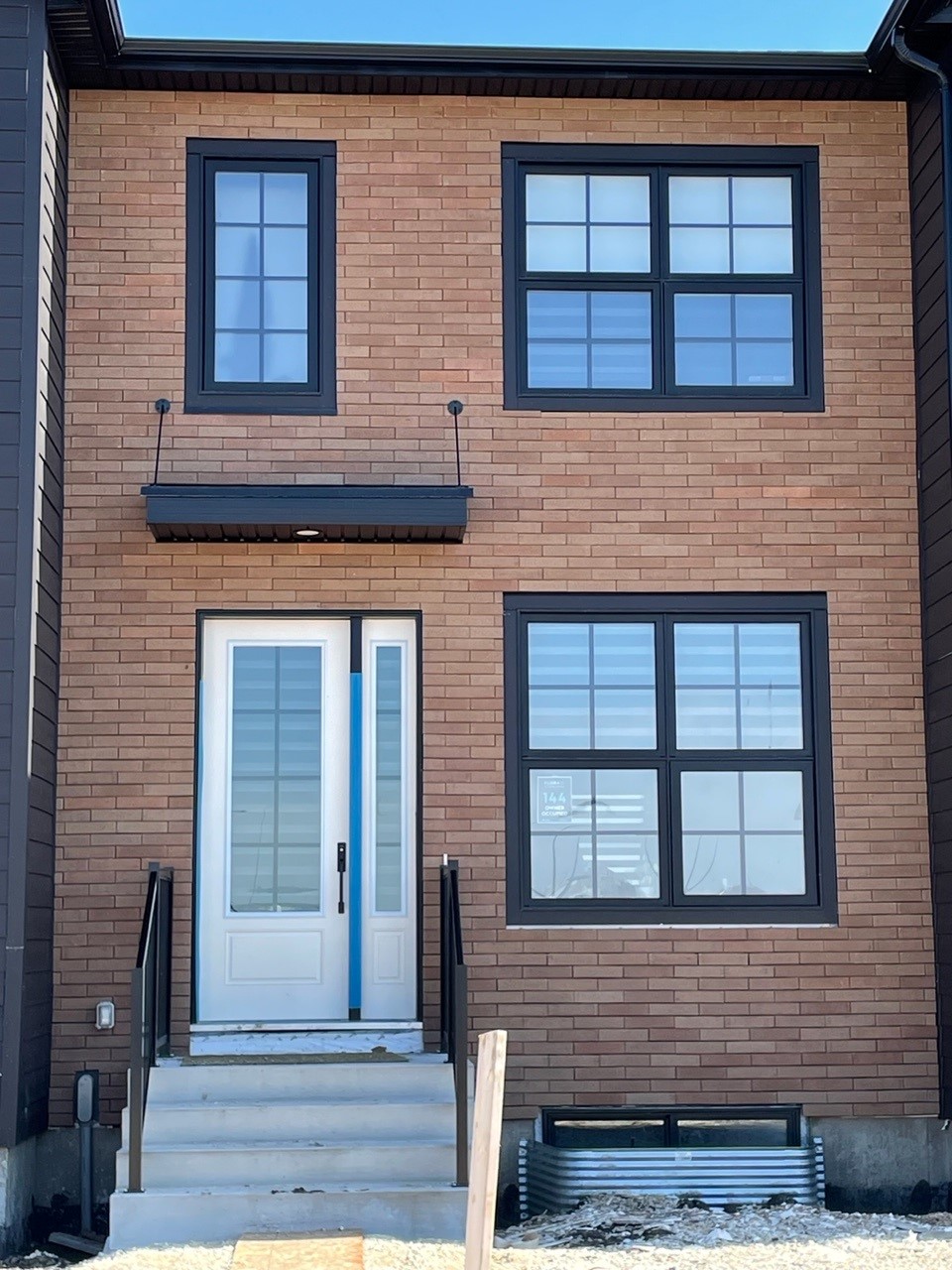

Click the thumbnails below to view a larger product image, as well as a project image showing a practical application (if available).
Colors are integral and require no additional treatment or finishes. Our color selections enable you to match and color coordinate any stone with all of our Architectural Profiles & Trim products. This includes products such as watertable sills, wall/pier caps, window/door trim, and more!
Dry-Stack from BRIKclad brick veneer is a mortarless natural clay brick that installs like siding. Using a 1-step installation method, Dry-Stack is DIY friendly and installs in a matter of minutes. Please refer to the Specifications tab to view a full list of the required items for installing BRIKclad’s Dry-Stack brick veneer.
Add a touch of warmth and permanence to your space with Dry-Stack from BRIKclad. Depending on your design style, this mechanically fastened mortarless clay brick veneer is equally at home in a traditional, industrial or contemporary setting. BRIKclad’s Dry-Stack features rolled edges, a matte textured face, and a full-body color that will not change over time.
- Brick Sizes:
- – Length: 11 5/8“
- – Height: 2 ¾“
- – Thickness: 1 3/5”
- Available Colors: 4

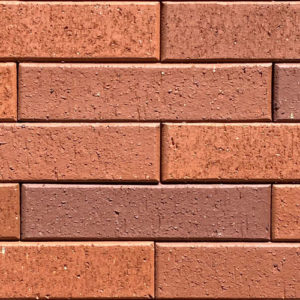

- – Cambria

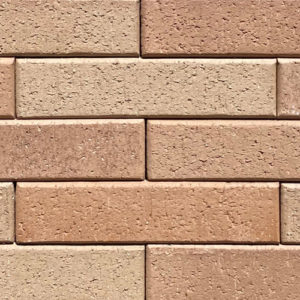

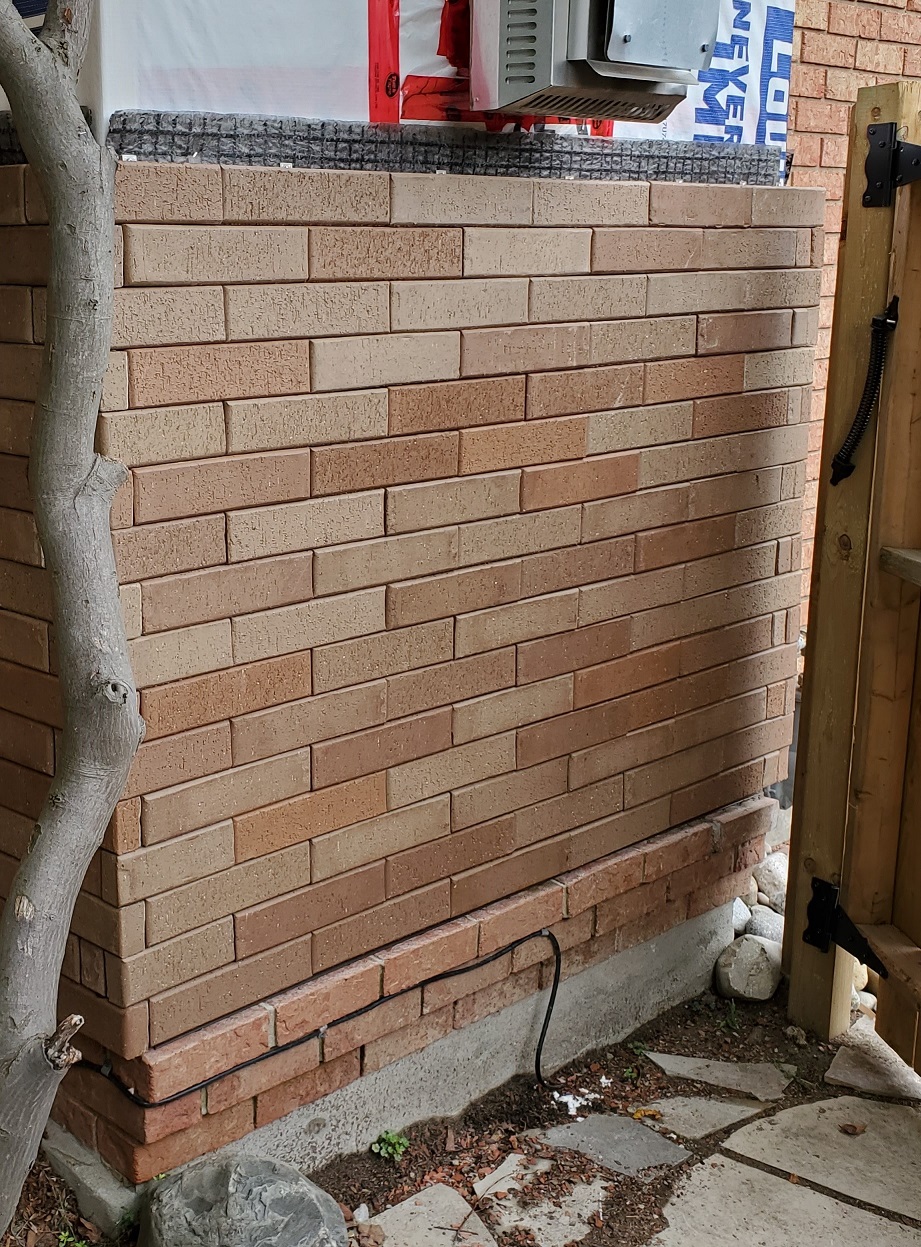

- – Prairie

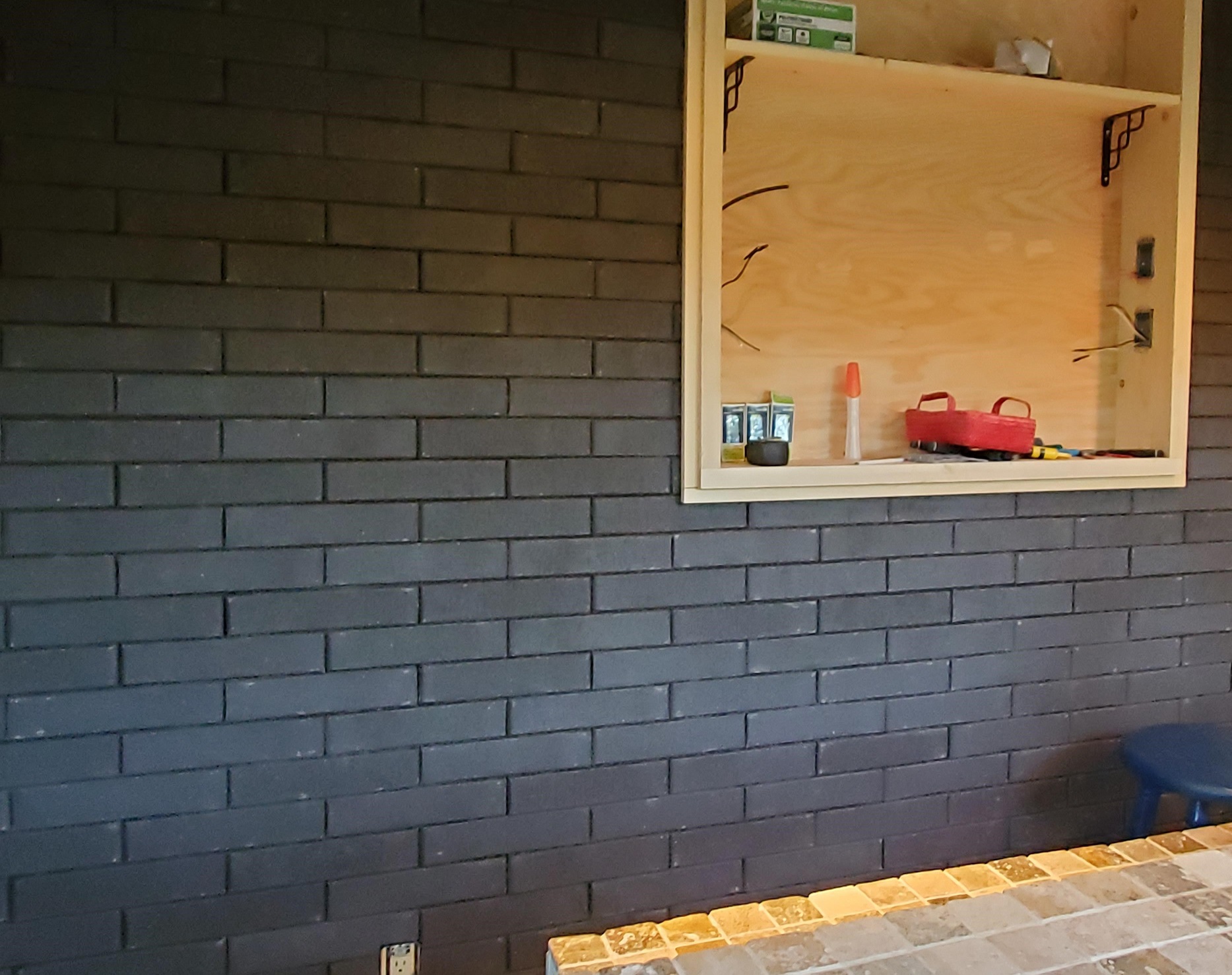

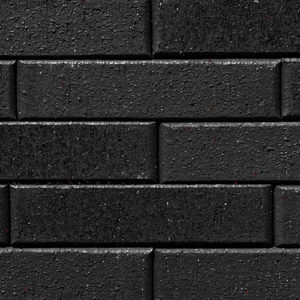

- – Slate

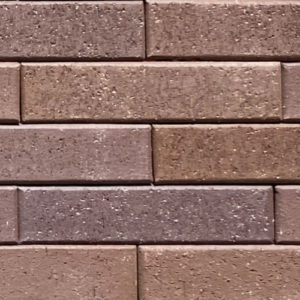

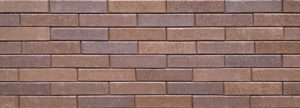

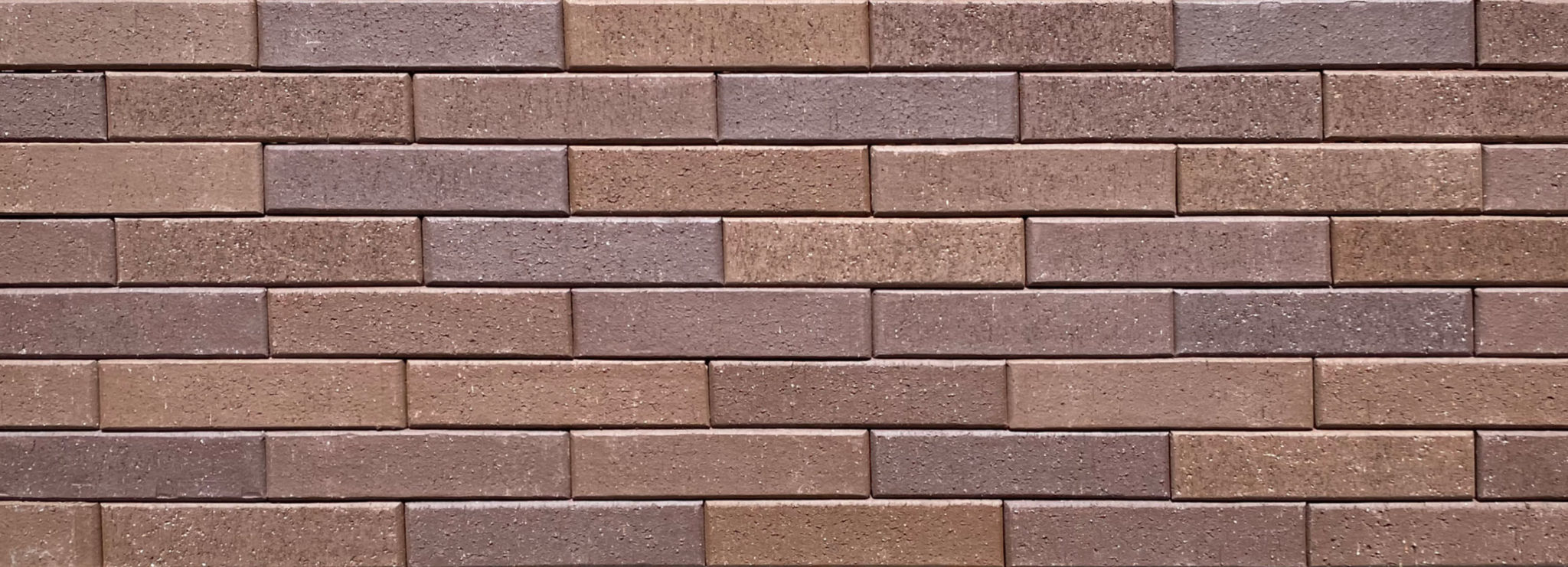

- – Walnut
- Edge Style: Rolled
BRIKclad does not require special corners as the same brick is used for the corners. There are 3 ways to install the corner detail depending on the preference and skill level:
– Prominent Face corner
– Lapped corner
– Quirk Miter corner
It is important to always start installing BRIKclad at your lowest corner and building up your corners 1 to 2 rows and then filling in the brick in between the corners. Please refer to the BRIKclad Installation Guide for more information.
Items Required for Dry-Stack Installation:
– BRIKclad Dry-Stack brick veneer

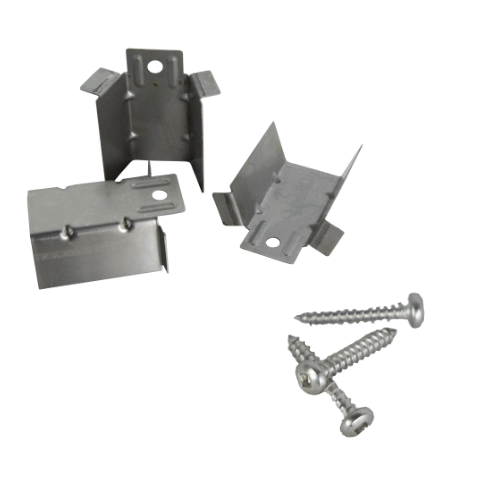

– QS DS Fastening Clip – Stainless steel clip used to secure brick to the wall
– SS Screw – Stainless steel screw, used to fasten the clip to the wall (1 inch – 8 gauge)
– Starter Angle – Stainless steel starter, used at the base of a wall and above any window and door openings (48” in length)

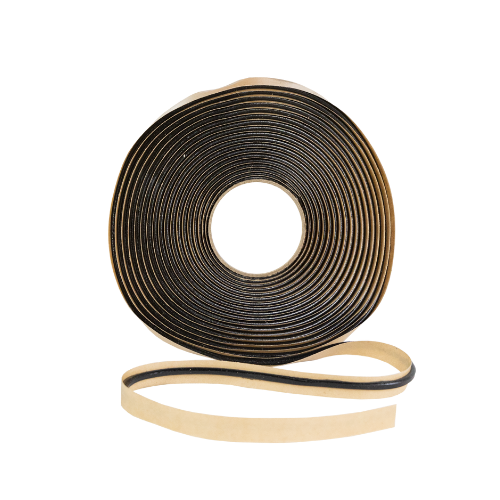

– QS Butyl String – Waterproof synthetic rubber adhesive, used to bond brick (30 feet per roll)
– Rainscreen – Approved mesh rainscreen product is required behind BRIKclad to allow for wall drainage and ventilation. (Requirements: 6 mm minimum thickness for USA and 10 mm minimum thickness for Canada).
- BRIKclad - Dry-Stack Technology Drawing
- BRIKclad - Dry-Stack Base Elevation
- BRIKclad - Dry-Stack with Sill to Siding
- BRIKclad - Dry-Stack Section Drawings
- BRIKclad - Dry-Stack and Sill Transitions fo EIFS
- BRIKclad - Dry-Stack with Metal Drip to EIFS
- BRIKclad - Dry-Stack Renovation base
- BRIKclad - Traditional Technology Drawing
- BRIKclad - Traditional Base Elevation
- BRIKclad - Traditional with Sill to Siding
- BRIKclad - Traditional Metal Drip to Siding
- BRIKclad - Traditional and Sill Transitions to EIFS
- BRIKclad - Traditional with Metal Drip to EIFS
- BRIKclad - Traditional Renovation base
