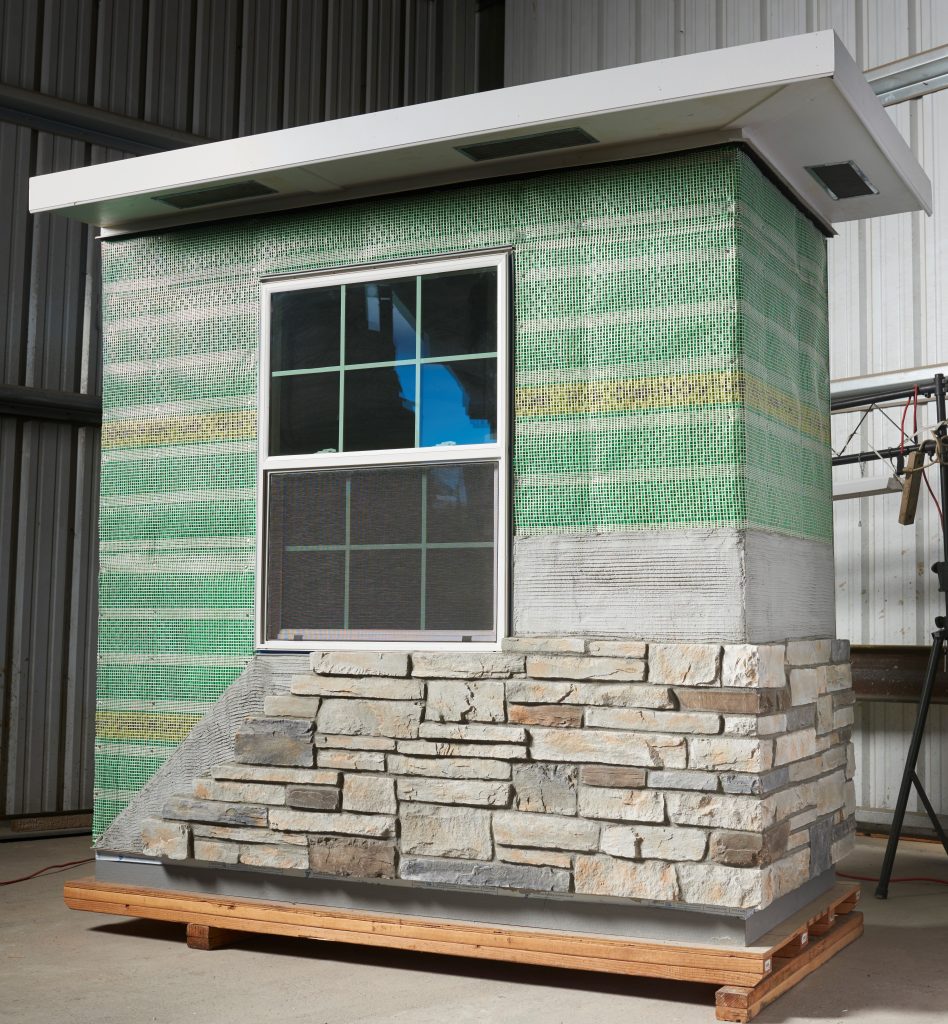

Drain-N-Dry™ Lath


Drain-N-Dry Lath delivers the ultimate moisture management through drainage, drying and moisture vapor control. It installs quickly and is a 3-in-1 product that includes:
- Chemical and corrosion resistant fiberglass lath (Alkali Resistant)
- 10mm Rainscreen
- Eliminates the need for a secondary layer of Water Resistive Barrier (WRB)

Drain-N-Dry Lath is easy-to-cut and is packaged in lightweight rolls, reducing installation time to deliver a final product that will last the test of time.

To find a local dealer in your area that sells Drain-N-Dry™ products, please click Where to Buy.

Drain-N-Dry Lath Specifications:
– Roll Coverage: 150 sq ft
– Roll Width: 39 3/8
– Roll Length: 46′ – Includes an additional 1½” – 2″ width of lath to allow for overlapping of lath at edge seams

Features & Benefits:
Drain-N-Dry™ Lath is a superior lath and best-in-class rainscreen in one product:
Quick Install: Installs fast, providing two additional component systems in one pass: rainscreen and lath. Eliminates the need for a secondary layer of Water Resistive Barrier.
Moisture Control: Manages moisture through drainage, drying and moisture vapor control
Durable: Nothing to rust or corrode and the ultimate in alkaline resistance
Solid Structure: A fastener band every 6″ ensures solid connection to structure and easy visual inspection of fastener spacing
Fewer Fastener Penetrations: Substantial reduction of fastener penetrations in the primary WRB that typically occur when multiple materials are installed independently
Self Furring: Built in self furring ensures proper mortar embedment & scratch coat thickness
Lightweight: Extremely light and easy to transport, move, and install from scaffolding
Easy Install: Installs with nails or staples – no caps or washers needed
Easy Modification: Cutting and modification is so easy it can be done with a utility knife or scissors
